Fluid Pan: Service and Repair

24 11 014 Removing and installing/sealing or replacing transmission oil sump (GA8HP45Z)





Important!
- Do not let skin come in contact with gearbox oil and do not inhale gearbox oil vapors.
- Wear protective gloves.
- Ensure adequate ventilation





Important!
Remove transmission oil sump only after it has cooled down.
After completion of work, check gearbox oil level.
Use only the approved transmission oil.
Failure to comply with this requirement will result in serious damage to the automatic transmission!

Installation note:
The transmission oil sump must be renewed every time it is removed.





Necessary preliminary work:
^ Remove rear underbody protection
^ Remove transmission cross member.

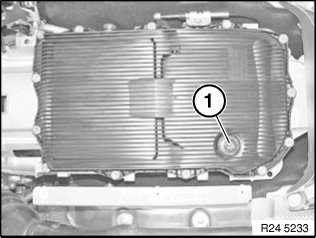

Remove oil drain plug (1).

Tightening torque 24 11 2AZ.

Drain automatic transmission oil.

Recycling:
Catch and dispose of escaping transmission oil.
Observe country-specific waste disposal regulations.








Unscrew all bolts.

Remove and renew transmission oil sump.

Installation note:
Insert new screws until screw heads make contact.

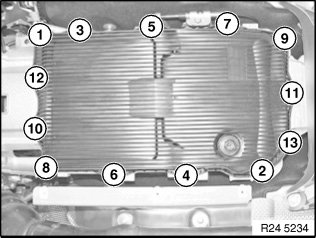

Tighten down screws in sequence 1...13 to specified torque and angle of rotation.

Tightening torque 24 11 4AZ.

Important!
Aluminium screws/bolts must be replaced every time they are released.
Jointing torque and angle of rotation must be observed without fail (risk of damage).
