11 61 368 Removing and Installing/Replacing Rear Left Charge-Air Duct

11 61 368 Removing and installing/replacing rear left charge-air duct (N55)

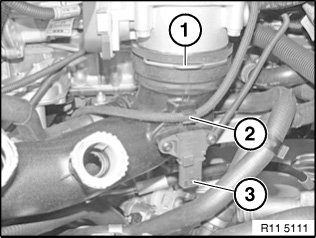

Unlock snap fastener (1).

Unclip vacuum hose (2) and lay to one side.

Disconnect plug connection (3).

Installation Note:
Plug connection (3) must snap audibly into place!

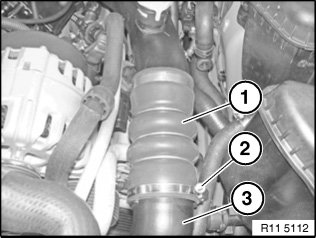

Illustration shows N54.





Unfasten hose clamp (2).

Tightening torque 11 61 3AZ.

Detach rear charge-air duct with gaiter (1) from front charge-air duct (3).

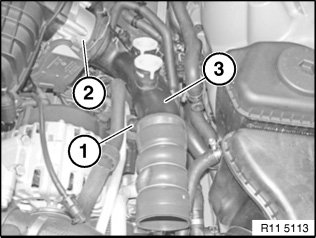

Important!
Risk of breakage!





Bracket (1) of charge-air duct (3) may break during removal.

Carefully lever out bracket (1) with a suitable tool in upward direction.

Detach charge-air duct (3) from intake plenum connection (2) and remove in upward direction.

Installation Note:
The gasket inside the snap fastener and bracket (1) must be coated with lubricant.

Charge-air duct (3) must snap audibly into place!





Assemble engine.
