11 61 365 Replacing Left Charge-Air Duct

11 61 365 Removing and installing/replacing front left charge air duct (N55)





Necessary preliminary work:
^ Remove intake port
^ Remove front underbody protection





Unlock snap fastener.

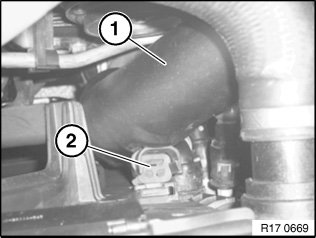

Detach charge air duct (1) from charge air cooler (2).

Installation Note:
^ Coat sealing rings of snap fasteners with lubricant.
^ Pressure pipes must audibly snap into place.

Pull pressure pipe (1) out of bracket (2).








Unfasten hose clamp (2).

Tightening torque 11 61 3AZ.

Release charge air duct (3) from gaiter (1).

Note:
Remove charge air duct (3) in upward direction by simultaneously turning anticlockwise (see direction of arrow).





Assemble engine.
