Replacing Right Engine Support Arm

22 11 100 Replacing right engine support arm (N54,N55)





Necessary preliminary work:
^ Secure engine in installation position
^ Remove catalytic converter for cylinder 1-3 (N54 only)

Observe safety instructions on raising the vehicle.

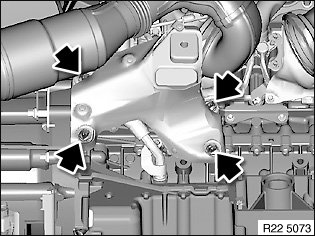

Release screws.

Tightening torque 22 11 3AZ.

Remove engine support arm.

L5':
