51 12 828 Removing and Installing/Replacing Guide For Rear Left or Right Bumper

51 12 828 - Removing and installing/replacing left or right guide for rear bumper





Necessary preliminary tasks:
- Remove rear bumper trim
- Remove bumper side section 51 12 201 Replacing Rear Left Or Right Bumper Side Section

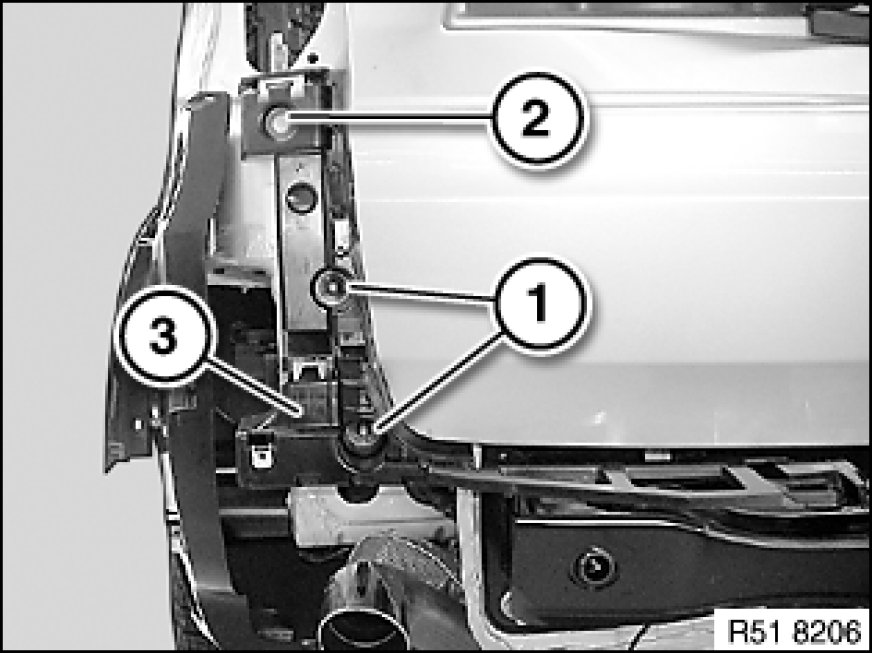

Unscrew nuts (1).
If necessary, release nut (2).
Remove guide (3).
Tightening torque 51 12 5AZ [1][2]Rear Bumper.
