51 12 825 Removing and Installing/Replacing Guide for Rear Centre Bumper

51 12 825 - Removing and installing/replacing guide for rear center bumper





Necessary preliminary tasks:
- Remove rear bumper trim

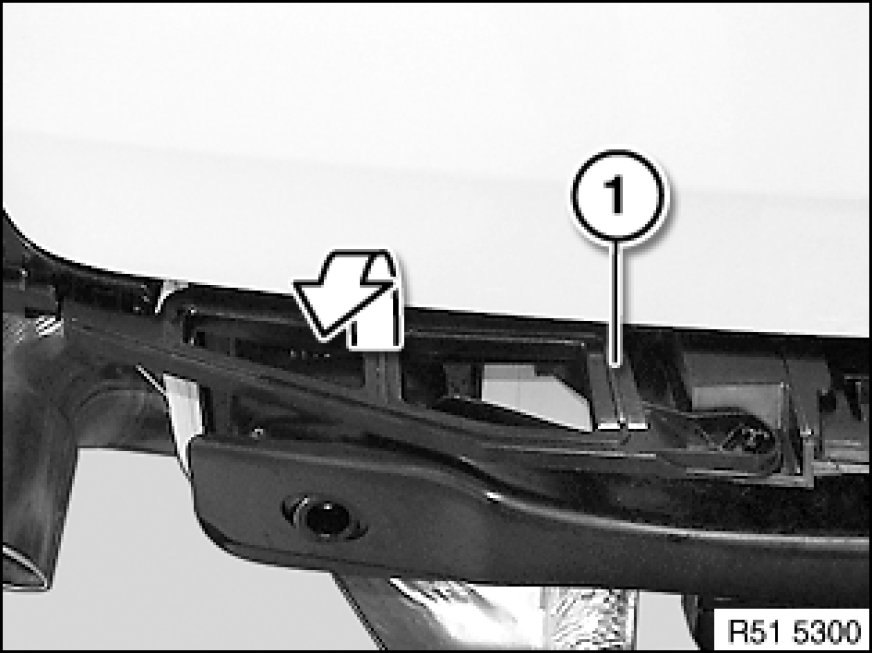

Unclip outer support (1) and remove.

Installation:
Make sure support is correctly seated.

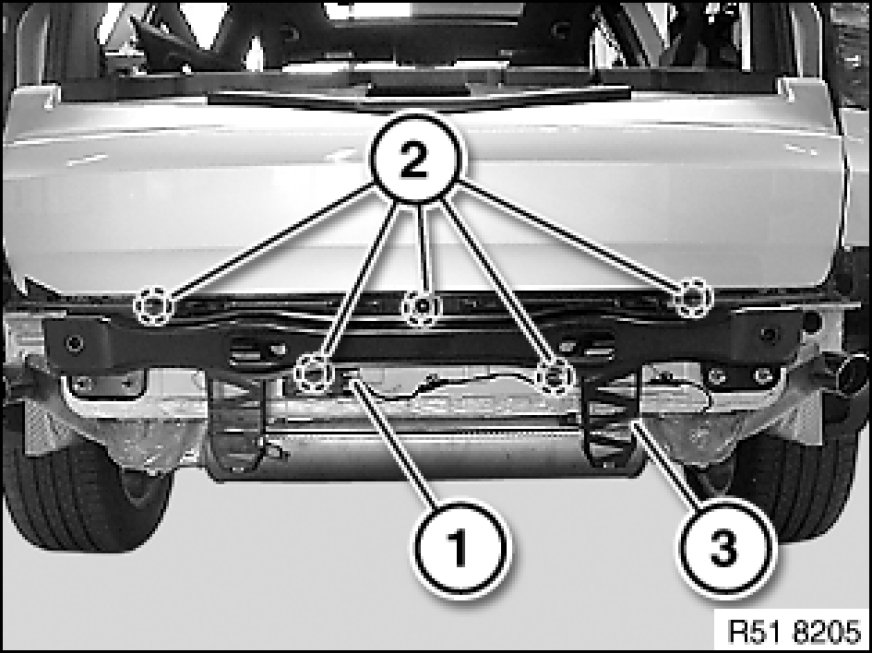

If necessary, disconnect plug connection (1) from aerial for comfort access.
Unscrew nuts (2).
Feed out guide (3) towards bottom.
Tightening torque 51 12 5AZ [1][2]Rear Bumper.
