61 31 135 Removing and Installing/Replacing Headphones Connection Socket

61 31 135 Removing And Installing/replacing Headphones Connection Socket

Special tools required:







Unclip trim (1) with special tool 00 9 340 from Center console.

Installation:
Retaining lugs on trim (1) must not be damaged or missing.
Make sure trim (1) is correctly engaged on Center console.

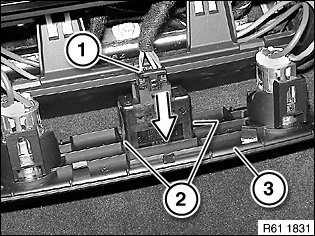

Disconnect plug connection (1).
Press together retaining lugs (2) and feed headphones connection socket in direction of arrow out of trim (3).

Installation:
Make sure headphones connection socket is correctly seated in trim (3).
