Antenna, TV: Service and Repair

65 24 030 - Removing and installing/replacing TV amplifier (one, left or right)





Necessary preliminary tasks:
- Remove capping in luggage compartment on left or right Removing and Installing/Replacing Left or Right Capping In Luggage Compartment





Note:
Illustrations show removal of the TV amplifier on the left side. The TV amplifier on the right side is removed in the same way.

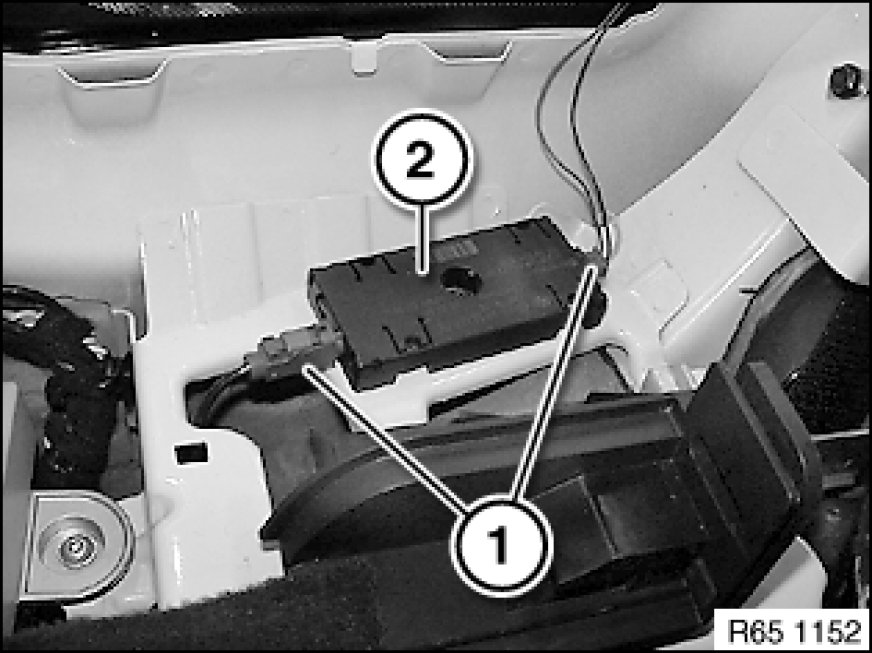

Disconnect plug connection (1).

Release screw (2) and remove TV amplifier.
