Quarter Window Glass Moulding / Trim: Service and Repair

51 36 056 - Removing and installing/replacing trim strip on side window on rear left or right





Special tools required:





Note:
Trim strip (1) must not be bent during removal.

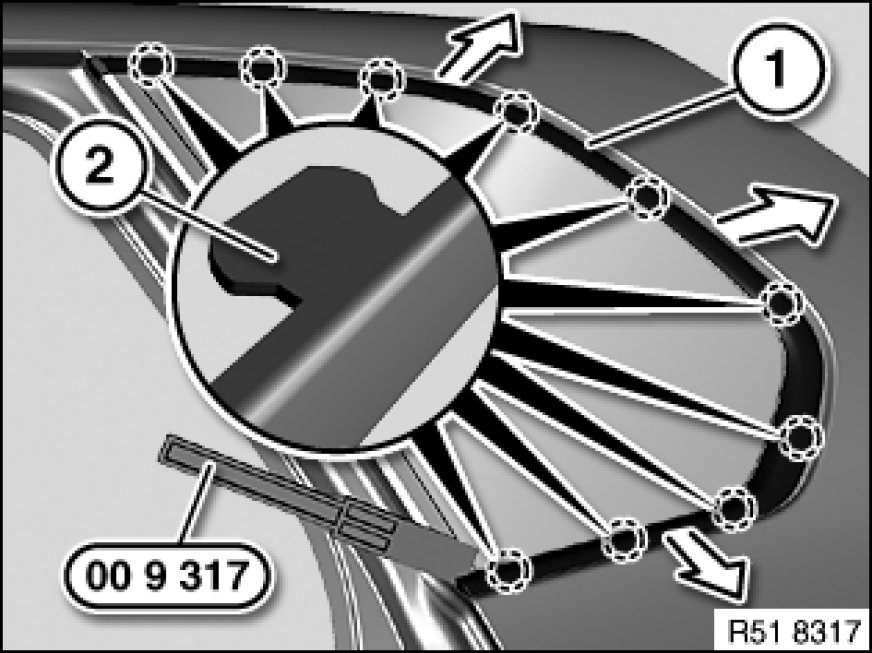

Starting at bottom, unclip trim strip (1) from lugs (2) in succession with special tool 00 9 317.

Installation:
Lugs (2) must not be missing or damaged.
