67 62 020 Removing and Installing/Replacing Flat Motor For Rear Left or Right Power Window Unit

67 62 020 Removing And Installing/replacing Flat Motor For Rear Left Or Right Power Window Unit







Necessary preliminary tasks:
- Remove rear power window unit

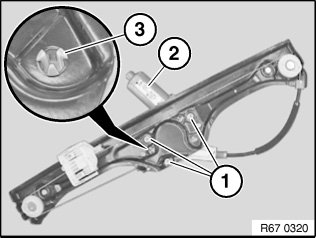

Release screws (1) and detach flat motor (2) from power window unit.

Installation:
Retaining pins (3) must not be released







IMPORTANT To ensure tension-free installation of flat motor, observe the specified screwing sequence.

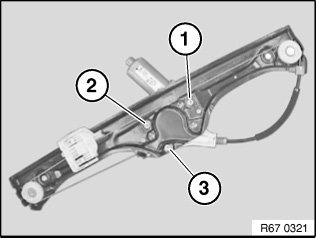

Tighten first screw (1), then screw (2) and finally screw (3).

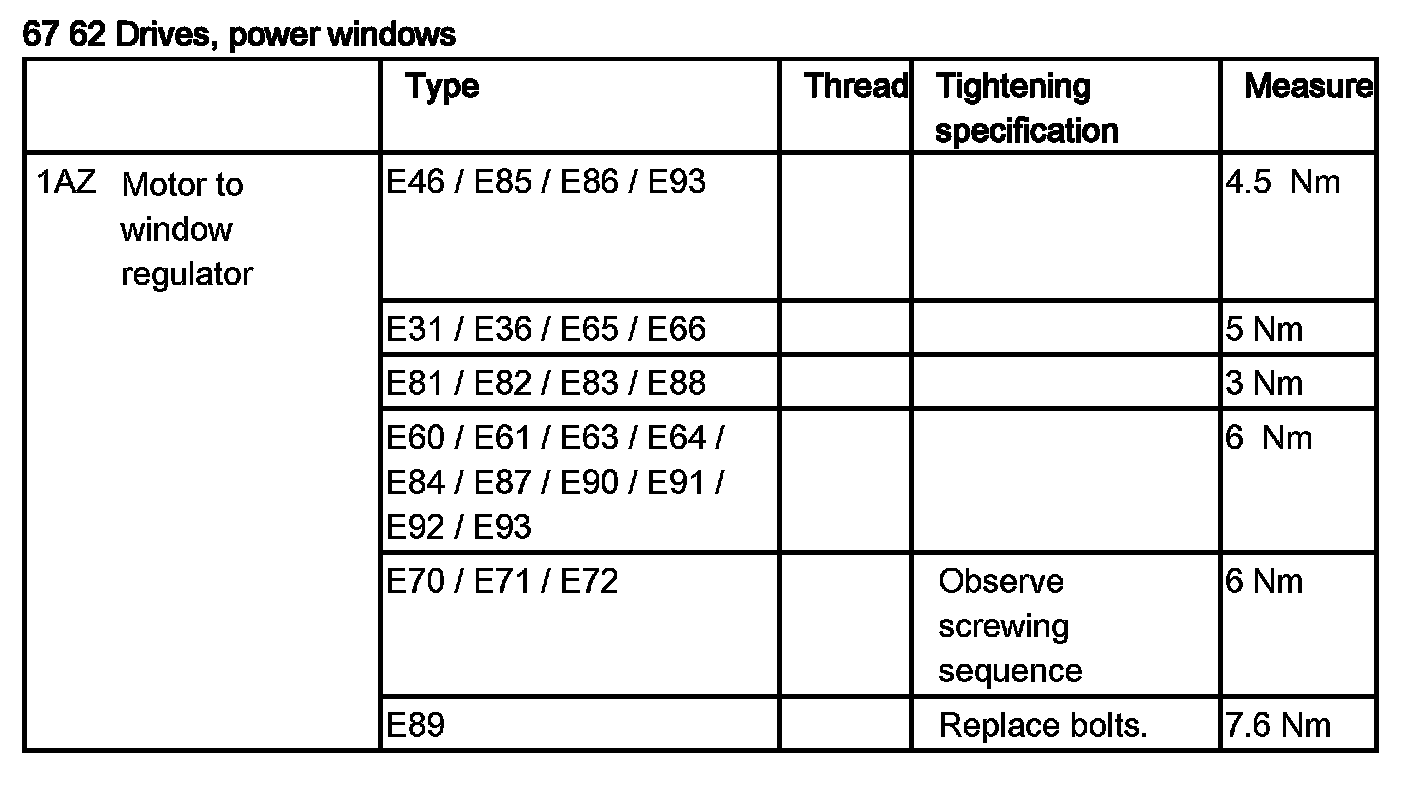

Tightening torque 67 62 1AZ.







After installation:
A normalization must be carried out in order to activate anti-trapping protection.

Normalization sequence:
- Ensure adequate system voltage
- All doors closed
- Press correspond power window switch in "Close" position and hold for approx. 2 seconds with window closed

NOTE:
If normalization is unsuccessful or the power window unit malfunctions, it will be necessary to carry out normalization via the control unit functions in the diagnosis system.
- Front power window: Footwell module
- Rear power window: Junction box
