61 31 112 Removing and Installing/Replacing Left or Right Shift Paddle For Automatic Transmission

61 31 112 - Removing and installing/replacing left or right shift paddle for automatic transmission





Necessary preliminary tasks:
- Remove airbag unit 32 34 030 Removing and Installing/Replacing Airbag Unit

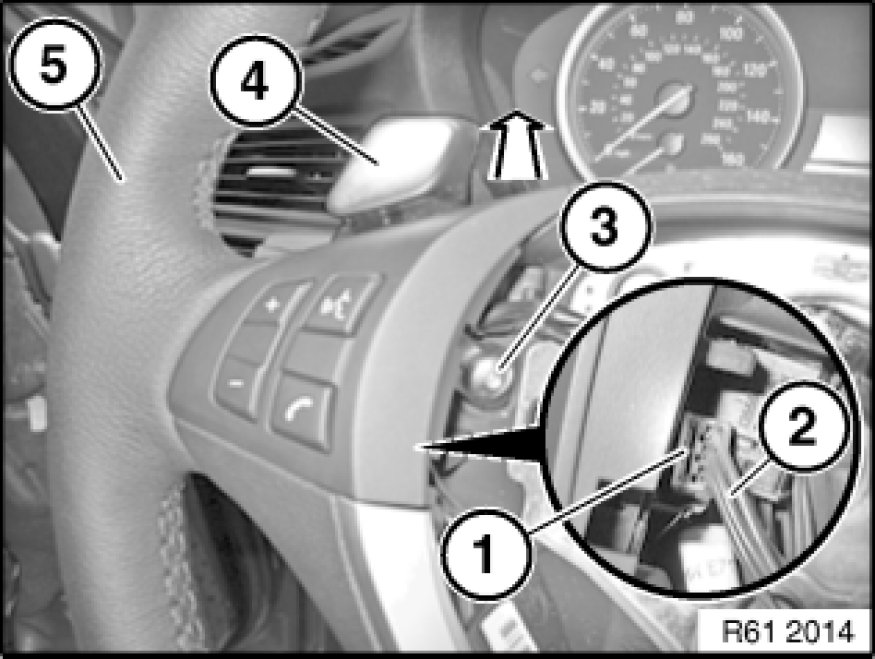

Disconnect plug connection (1).
Release screw (3).
Feed out wiring harness (2) and remove shift paddle for automatic transmission (4) in direction of arrow from steering wheel (5).

Installation:
Make sure shift paddle for automatic transmission (4) is correctly seated on steering wheel (5)
Make sure wiring harness (2) is laid exactly.
