61 31 221 Removing and Installing/Replacing Both Multifunction Steering Wheel Switches

61 31 221 - Removing and installing/replacing both multifunction steering wheel switches





Necessary preliminary tasks:
- Disconnect battery negative lead 61 20 900 Disconnecting and Connecting Battery Negative Lead
- Remove airbag unit 32 34 030 Removing and Installing/Replacing Airbag Unit





Note:

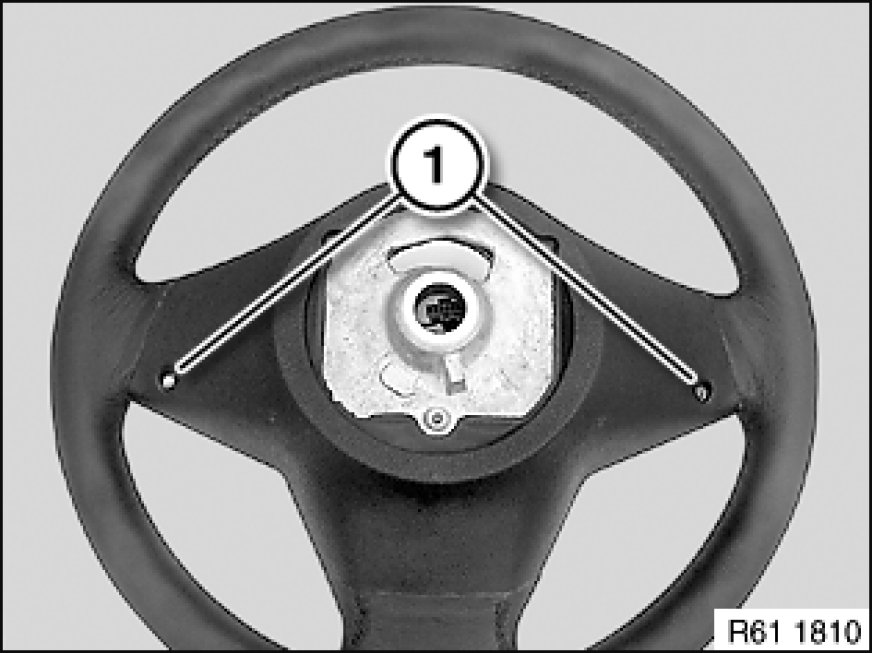

Illustration shows steering wheel removed.

Release screws (1).





Note:
Both multifunction steering wheel switches (1) are connected to each other by the wiring harness.

Disconnect plug connections (2).
Feed wiring harness (3) out of steering wheel.
Pull multifunction steering wheel switches (1) in direction of arrow out of steering wheel.

Installation:
Make sure electrical leads are correctly routed.
