Left or Right Easy Entry Bowden Cable

52 26 ... - Removing and installing/replacing left or right Easy Entry Bowden cable





Necessary preliminary tasks:
- Remove backrest cover
- Removing seat fabric

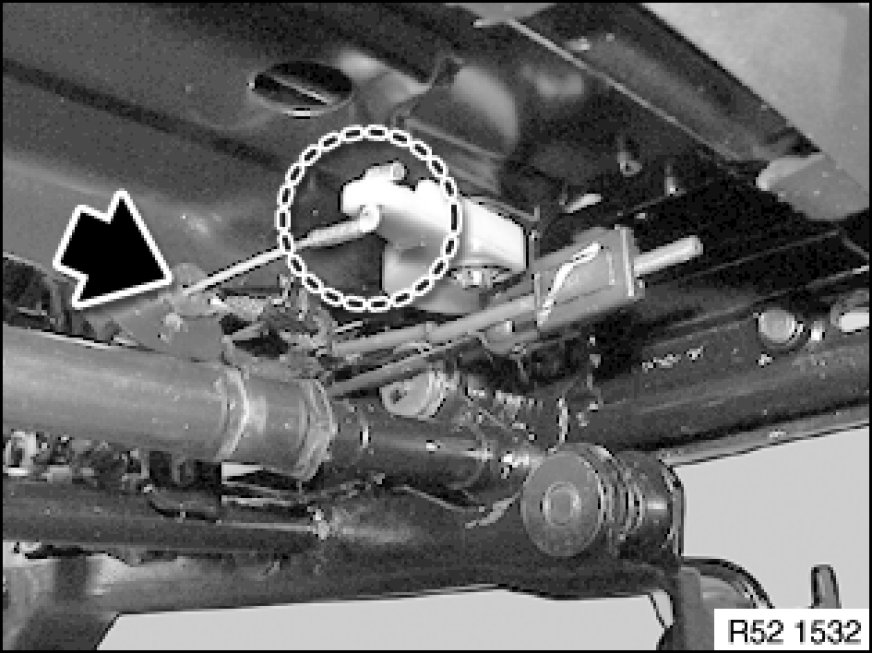

Unclip Bowden cable sleeve.
Feed Bowden cable nipple out of actuating mechanism.





Unclip Bowden cable sleeve.
Feed Bowden cable nipple out of release unit.





Cut open cable tie (1).

Installation:
If necessary, replace faulty cable ties (1).

Unclip Bowden cable from metal retainer.

Feed Bowden cable out of seat backrest frame.
