54 10 ... Removing and Installing/Replacing Front Drive Cable Plate

54 10 ... Removing and installing/replacing front drive cable plate






Also comply with the interactive 3D instructions for the removal and installation of the drive cable plate. It does not replace but enhance the applicable repair instructions. Press the individual point for animation display of the corresponding operations.
- 3-D animation of glass slide/tilt sunroof cover mechanism (steps 10 and 23)







Necessary preliminary tasks:
- Remove mechanism for glass cover at front

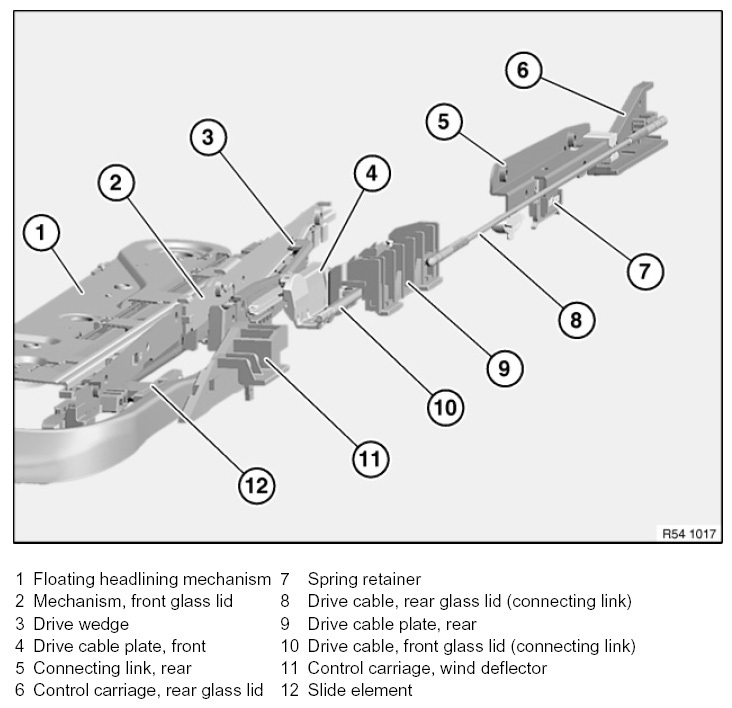

Overview of glass lid mechanism:

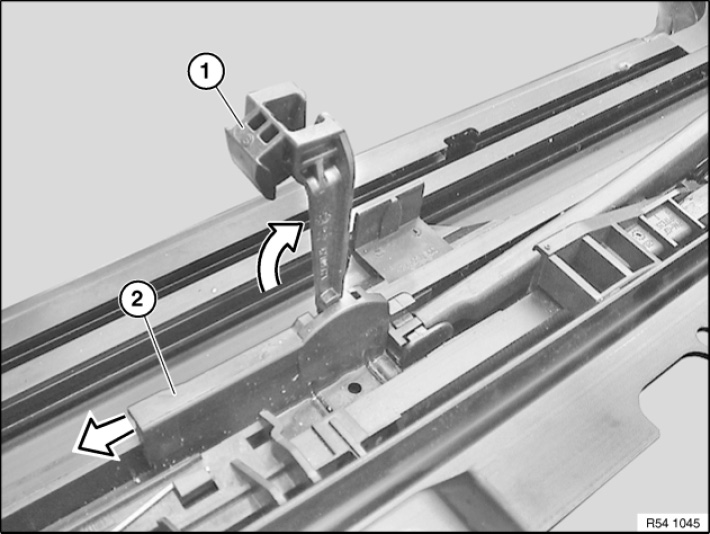

If necessary, remove drive wedge (1).
Slide front drive cable plate (2) to rear and remove from guide rail.

NOTE: Follow 3-D animation step 10.







IMPORTANT:
Risk of damage when installing drive cable plate
Before installation of front drive cable plate (1), rear drive cable plate (2) must be engaged.

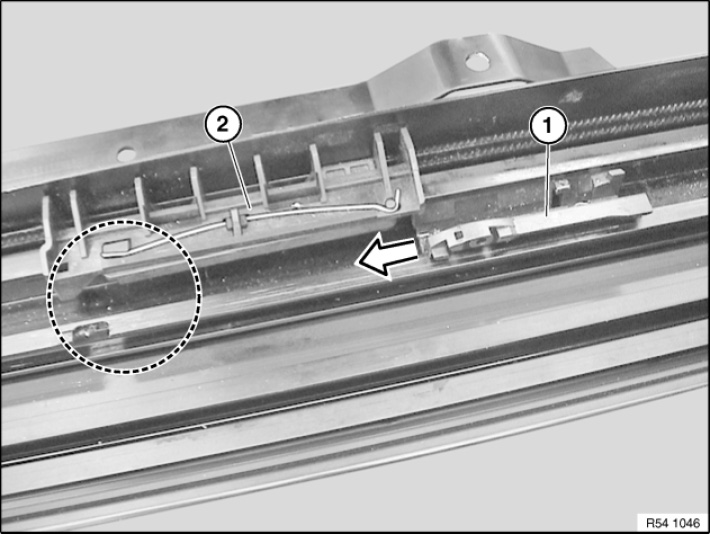

Incorrect position can be identified on basis of spring position and level position (marked area).
Check engaging of rear drive cable plate (2) in guide rail.
Slide in front drive cable plate (1).

NOTE: Follow 3-D animation step 23.







Installation note:
Clean guide rails of panorama glass roof.
Observe grease instructions for replacement parts.
