54 13 130 Removing and Installing Front Cross-Member

54 13 130 - Removing and installing front cross-member





Necessary preliminary tasks:
- Remove glass slide/tilt sunroof
- Remove drive Service and Repair

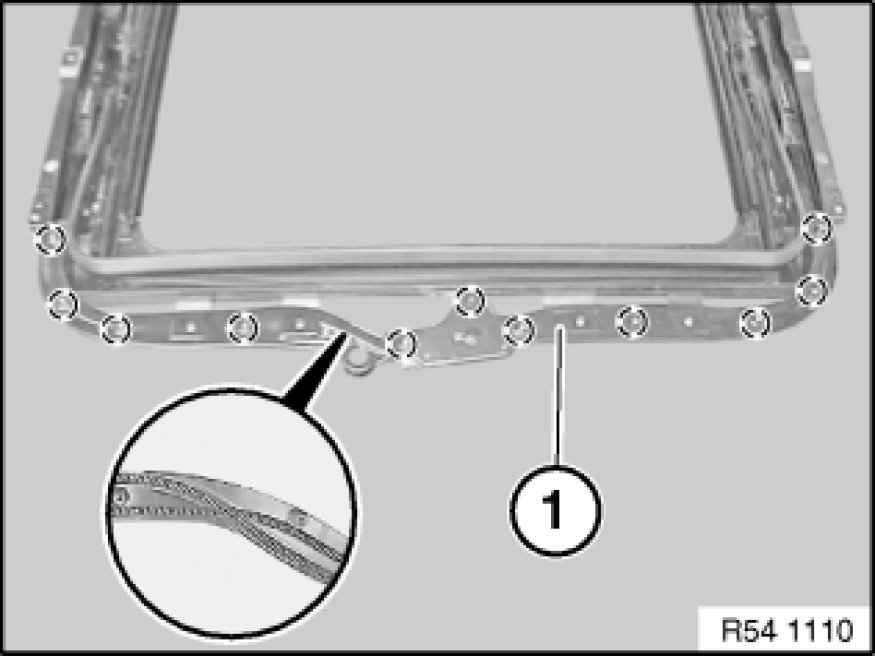

Release screws in marked area.
Tightening torque: 54 12 03AZ 54 12 Mechanical Components, Panorama Sunroof.
Remove cross-member (1).
If necessary, release fabric adhesive tape and replace.

Installation:
Pitch cables must be correctly located in guide
