54 13 105 Removing and Installing/Replacing Rear Water Channel

54 13 105 Removing and installing/replacing rear water channel







Necessary preliminary tasks:
- Remove complete glass slide/tilt sunroof
- Remove glass slide/tilt sunroof cover at rear

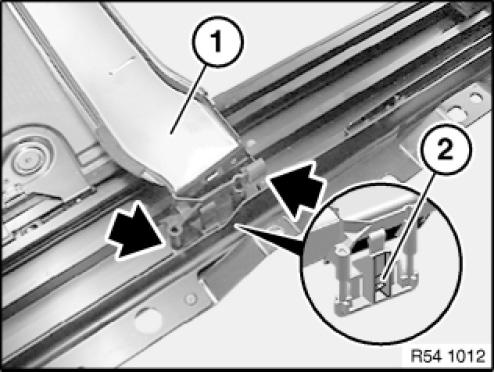

Unlock tab (2) and remove water channel (1) toward the top.

NOTE: 2 springs are loosely connected to the guide for the water channel.

Installation note:
Make sure that the springs are reinstalled on the supports for the water channel.

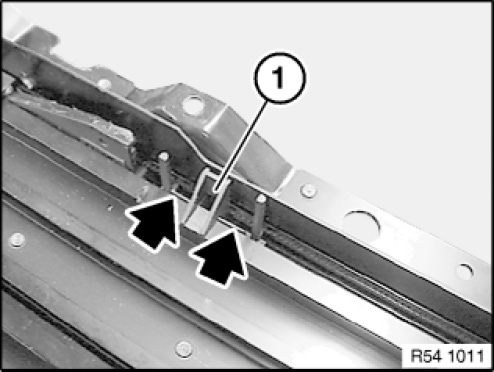

Removing supports for water channel:

NOTE:
Water channel support cannot be removed without incurring damage.
Break out tabs with a screwdriver and lever out support.

Installation note:
Replace water channel support and hook into place.







Installation note:
If dirty, clean guide rails of panorama glass roof.
