Removing and Installing/Replacing Side Trim Panel, Footwell, on A-pillar, Left

51 43 070 Removing And Installing/Replacing Side Trim Panel, Footwell, On A-Pillar, Left

Special tools required:







Necessary preliminary tasks:
- Remove front door sill cover strip
- Remove trim panel for pedal assembly

Detach mucket (1) in area of footwell trim.







Release screw (2) and remove release lever (3).

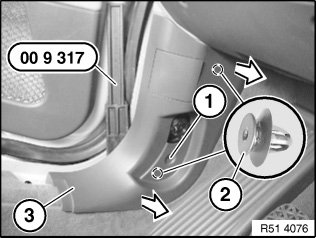

Release screw (1).
Unclip clips (2) with special tool 00 9 317. Remove trim panel (3) towards inside.







Installation:

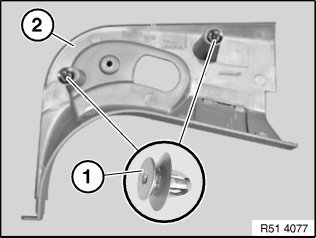

Clips (1) on trim panel (2) must not be damaged.
