51 44 013 Removing and Installing/Replacing Roofliner (Security)

51 44 013 - Removing and installing/replacing roofliner (Security)





Necessary preliminary tasks:
- Remove sun visors and counter supports Removing and Installing/Replacing Sun Visor and Left or Right Counter-Support on left/right
- Remove roof switch cluster Service and Repair
- Remove trims for roof pillar at front Roof Pillar At Front (A-Pillar), Left or Right(A-pillar) left/right
- Remove all handles
- Remove trims for door pillar at top Removing and Installing/Replacing Trim on Left or Right Door Pillar (Top)(B-pillar) left/right
- Remove trims for roof pillar at rear Removing and Installing/Replacing Trim Panel For Left or Right Rear Roof Pillar(C-pillar) left/right
- Remove trims for roof pillar at rear Rear Roof Pillar (D-Pillar), Left Or Right (D-pillar) left/right





Version with roller combination (dividing net):
Fold back cover (1) for dividing net mount (2).
Release screw (3) and remove dividing net mount (2).

Installation:
Observe position indications on reverse side of dividing net mount (2).





Release expansion rivet (1).





- Fold forward both rear seat backrests
- Move both front seat backrests as far back as possible
- Pull off muckets of front and rear doors and rear lid in roof area

Important!
The following tasks must be carried out with a second person assisting:

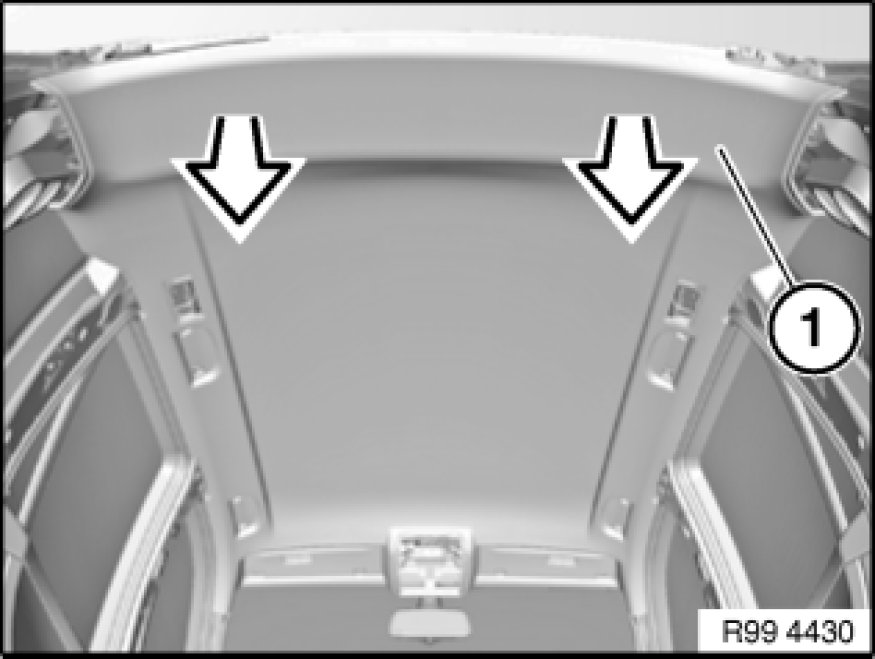

Support roofliner (1) at front.

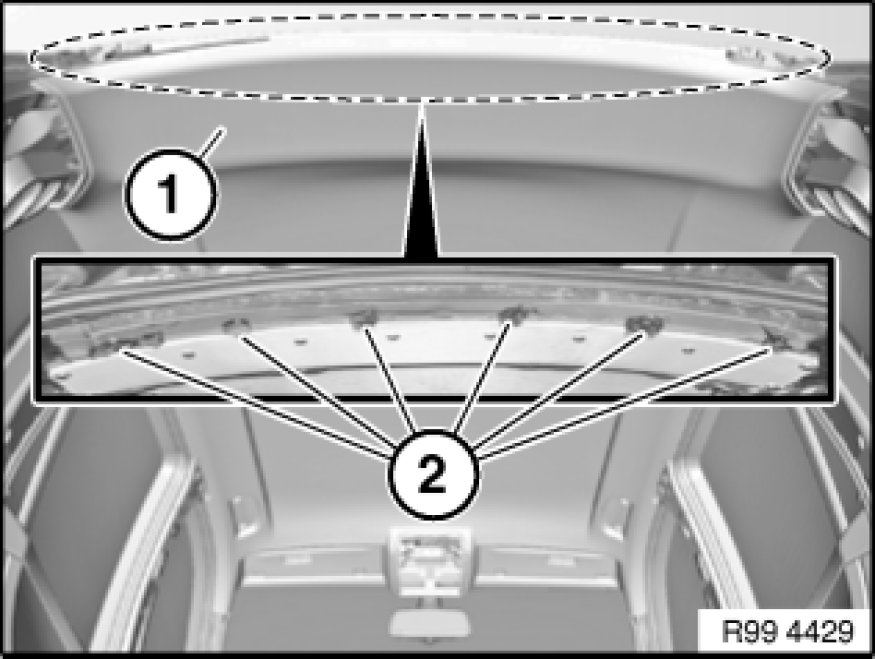

Roofliner (1) is additionally secured in area (2) to body with window glass adhesive.
Carefully detach roofliner (1) from roofliner body with a suitable tool.





Detach roofliner (1) in direction of arrow from body roofliner.
Carefully tilt roofliner (1) and feed out towards rear.





Replacement:
- Remove left/right mirror light 63 31 050 Removing and Installing/Replacing Mirror Light
- Remove left/right ceiling light Removing and Installing/Replacing Left or Right Interior Light
Version with roller combination (dividing net):
Cut out premarked cutout areas (1) for left/right dividing net mounts with a scalpel.

Important!
Ensure a clean cut so that the headliner material is not damaged on the inside.





Installation:
Installation sequence:
1. Feed in roofliner
2. Support roofliner at front
3. Secure roofliner with mucket
4. Secure expander rivets to roofliner at front
5. Screw down grab handles at front on left/right
6. Screw down grab handles at rear on left/right
7. Screw down sun visors and counter supports
8. Secure roofliner at rear with window glass adhesive
9. Add final details to vehicle
