Home >> BMW >> 2011 >> X5 M (E70) V8-4.4L Turbo (S63) >> Repair and Diagnosis >> Body and Frame >> Interior Moulding / Trim >> Console >> Service and Repair >> 51 16 ... Overview of Centre Console (Storage Compartment)

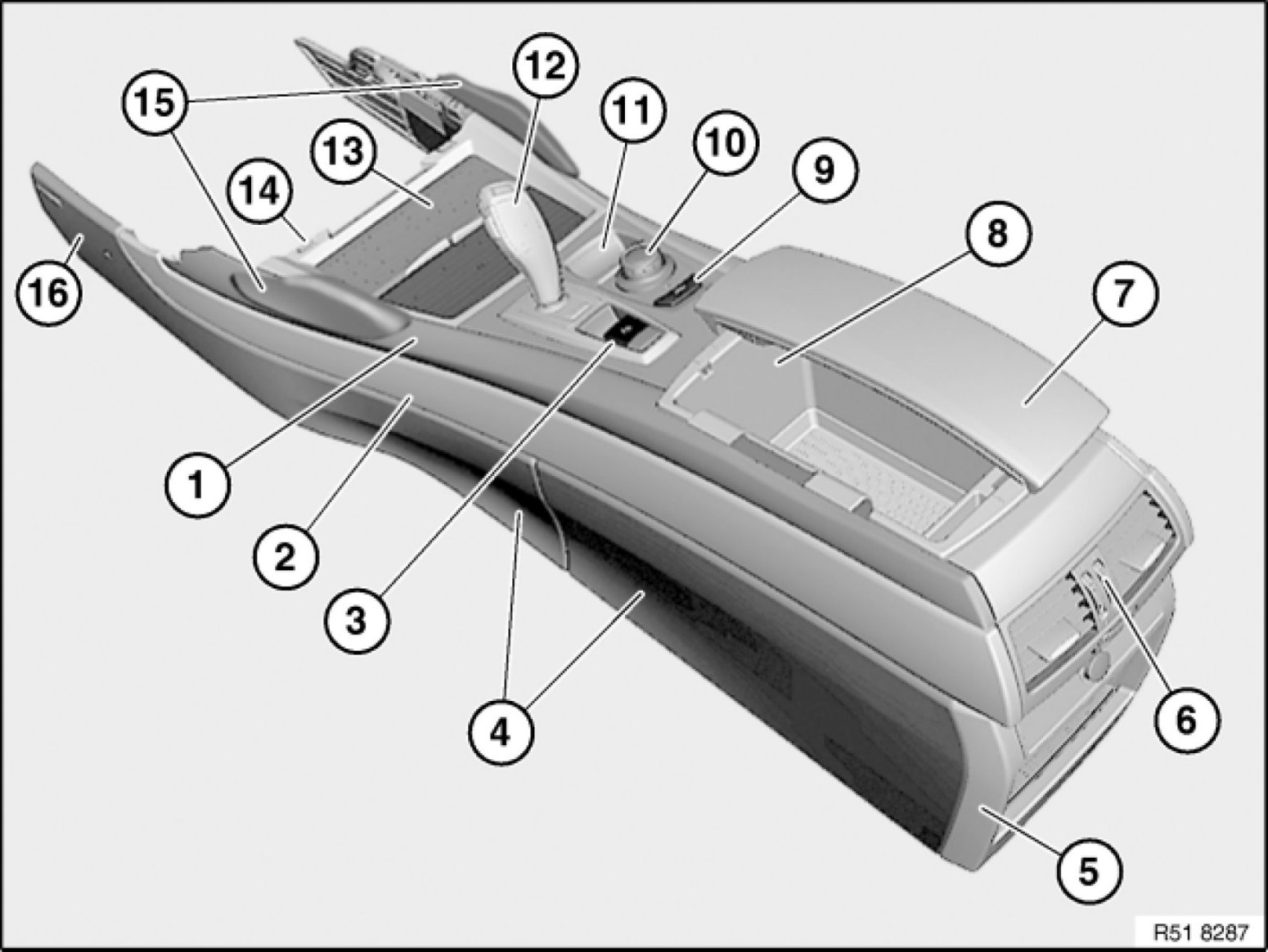

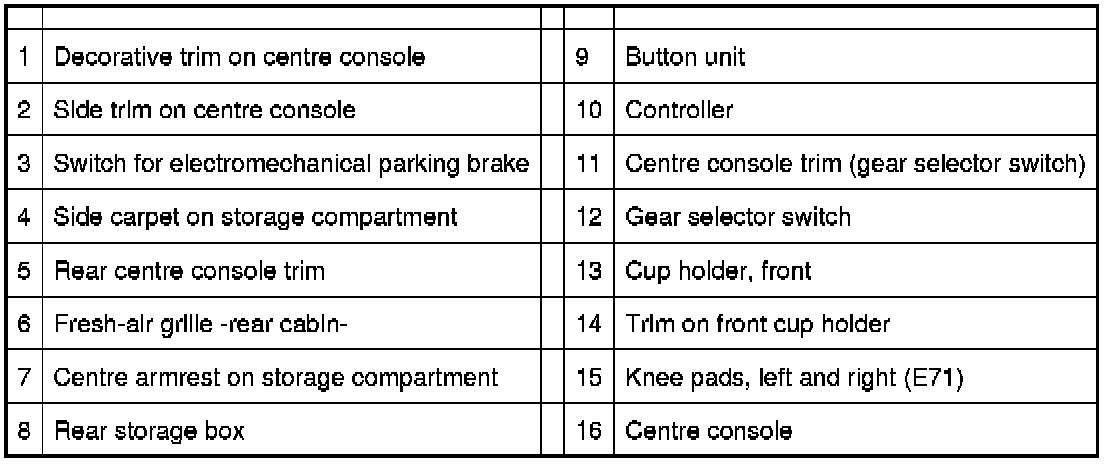

51 16 ... Overview of Centre Console (Storage Compartment)




51 16 ... - Overview of center console (storage compartment)
