Windshield Washer Spray Nozzle: Service and Repair

61 62 115 Replacing Spray Nozzle For Rear Window Washer Unit







Necessary preliminary work:
- Remove trim cover for rear window frame







NOTE:

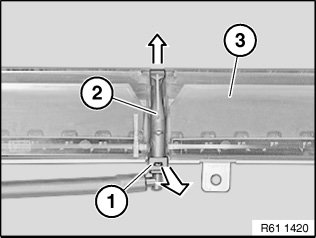

For purposes of clarity, illustration shows additional brake light removed.

Unlock the latch mechanism (1) and pull washer jet (2) out of the additional brake light (3) in direction of arrow.
