61 62 150 Removing and Installing/Replacing Rear Window Washer Pump For Rear Window Washer Unit

61 62 150 Removing And Installing/replacing Rear Window Washer Pump For Rear Window Washer Unit







Necessary preliminary work:
- Release fluid reservoir for windscreen washer system and pull out

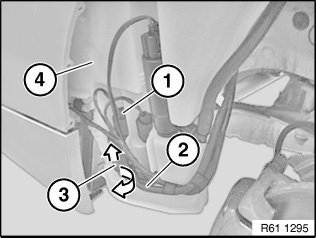

Disconnect plug connection (1).
Detach hose pipe (2) from washer pump for rear window washer unit (3).
Turn washer pump for rear window washer system (3) if necessary and pull in direction of arrow out of fluid reservoir for windscreen washer system (4).







Installation note:
- Replace strainer of washer pump for rear window washer unit
- Coat sealing ring of washer pump for rear window washer unit with lubricant
- Lay hose of washer pump for rear window washer unit without kinks
- Fill fluid reservoir
