Washer Fluid Level Switch: Service and Repair

61 31 492 Replacing Level Switch For Windscreen Washer System







Necessary preliminary work:
- Remove trim cover from wheel arch at front left
- Partially remove front wheel arch cover

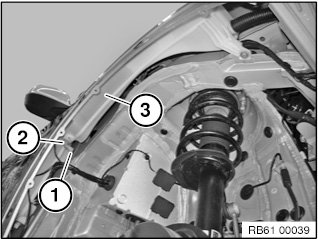

NOTE: For purposes of clarity, image shows wheel arch cover removed.

Disconnect plug connection (1).
Turn level switch for windscreen washer unit (2) to the left and remove from fluid reservoir for windscreen washer unit (3).
