Headlamp Washer Spray Nozzle: Service and Repair

51 11 ... Remove and install/replace cover for headlight cleaning system on left or right

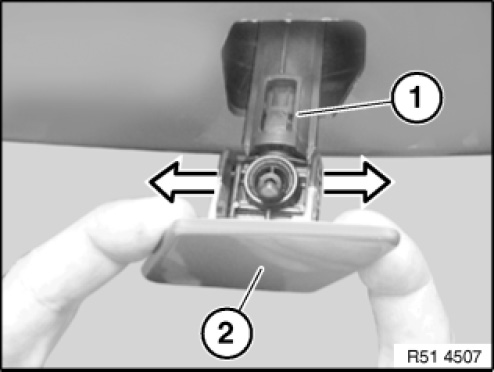

Pull out washer jet (1) by cover (2).

IMPORTANT: When releasing cover (2), grip washer jet (1) firmly and then allow to slide back slowly (Risk of damage).

Release cover (2) sideways from washer jet (1).







Installation note:

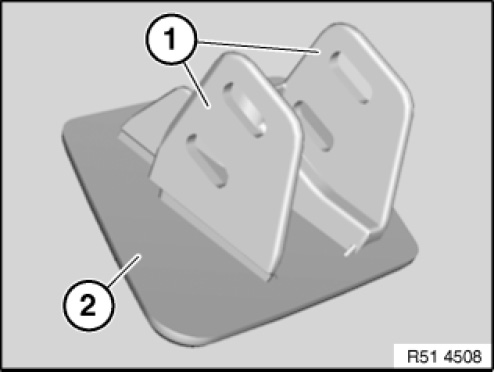

Guides (1) on cover (2) must not be damaged.
