Window Shade: Service and Repair

51 16 405 Removing And Installing/Replacing Roller Sun Blind On Side Window Of Left Or Right Rear Door







When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).







Necessary preliminary work:
- Remove rear door trim panel

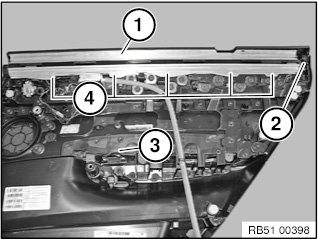

Release screws (4).
Tightening torque 51 16 18AZ.
Starting at the hole for locking rod (2), detach roller sun blind module (1) from door trim panel (3).







Installation note:

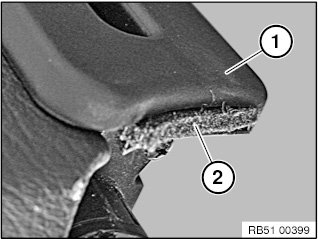

The front and rear felt strips (2) on the roller sun blind module (1) must not be damaged or missing.
