Rear Door Window Regulator: Service and Repair

51 37 000 Removing and installing/replacing complete rear left or right power window regulator







NOTE:
Disengage, but do not remove, the door window and secure in the door window frame.
The cover on the window frame does not need to be removed.

Necessary preliminary tasks:
- Remove rear door window glass







Unlock plug connection for flat motor and disconnect.

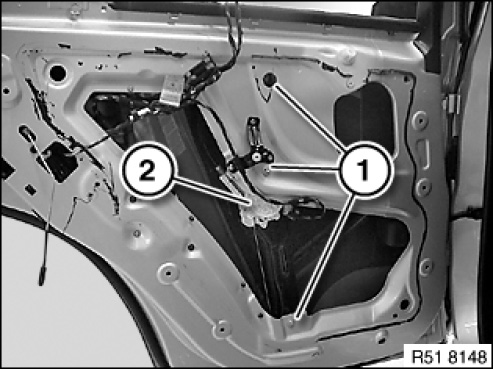

Release nuts (1) and feed out power window regulator (2).
Tightening torque 51 35 2AZ.

Replacement
Swap over flat motor for power window regulator.
