51 22 330 Removing and Installing/Replacing Weather Strip on Inside Rear Door






51 22 330 Removing And Installing/Replacing Weather Strip On Inside Rear Door







Necessary preliminary tasks:
- Remove rear door trim panel

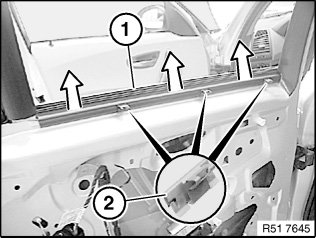

Pull the weather strip (1) off rear door.

Installation note:
If necessary, replace faulty clamps (2).
