51 32 160 Removing and Installing/Replacing Housing Cover on Inner Left or Right Door Window Frame

51 32 160 Removing And Installing/Replacing Housing Cover On Inner Left Or Right Door Window Frame







Necessary preliminary work:
- Open side window if necessary
- Remove front door trim panel







IMPORTANT:
- Risk of damage.
- Cover (2) must not be kinked.

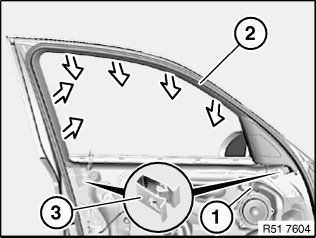

Lever out cover (2) at clamps (3).
Unclip cover (2) in direction of arrow and remove.

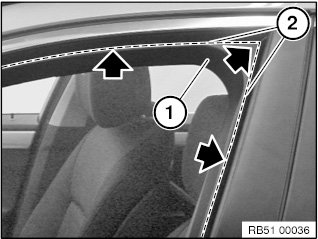

Installation note:
- Feed cover on window frame (2) neatly into the gap of the rubber window seal (1).
- Make sure cover fits properly above door seal.
