67 62 000 Removing and Installing or Replacing Flat Motor For Front Left or Right Power Window Unit



67 62 000 Removing And Installing Or Replacing Flat Motor For Front Left Or Right Power Window Unit







Necessary preliminary work:
- Remove front power window unit

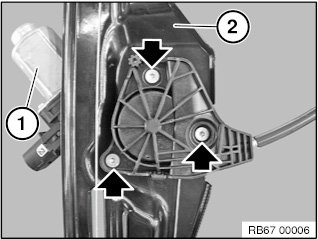

Release screws and detach flat motor (1) from power window regulator (2).







After installation:
An initialisation must be carried out in order to activate anti-trap mechanism.
Read and comply with notes on initialisation of power window regulator.
