61 31 117 Removing and Installing/Replacing Power Window Switch (Driver's Side)

61 31 117 Removing and installing/replacing power window switch (driver's side)







Necessary preliminary tasks:
- Remove front door trim panel, left

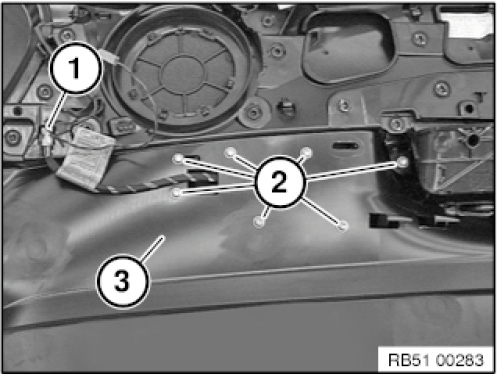

Clip out connector (1) from control panel wiring harness.
Release screws (2) from control panel fixture.
Hook switch cluster support forward out of door trim panel (3) while feeding out wiring harness for switch cluster.
Feed out.

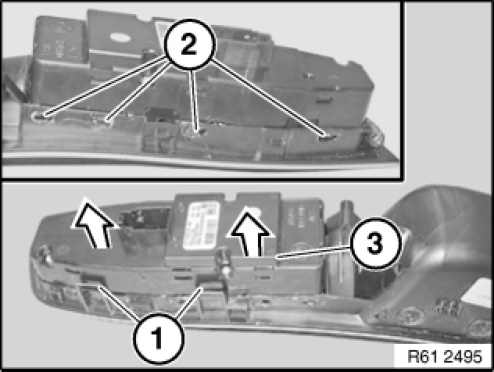

Release retaining tabs (1) and clips (2).
Remove switch (3) in direction of arrow.

Installation note:
Retaining tabs (1) and clips (2) must not be damaged or missing.
Make sure switch (3) is correctly seated.
