26 20 000 Removing and Installing Front Propeller Shaft

26 20 000 Removing and installing front propeller shaft







IMPORTANT: Do not move vehicle under its own drive power once propeller shaft has been removed.







IMPORTANT:
- Replacement only:
according to installation with BMW diagnosis and information system under control unit function
Perform function check of transfer box (calibration)







Necessary preliminary tasks:
- Remove underbody protection at front and rear
- Remove reinforcement plate

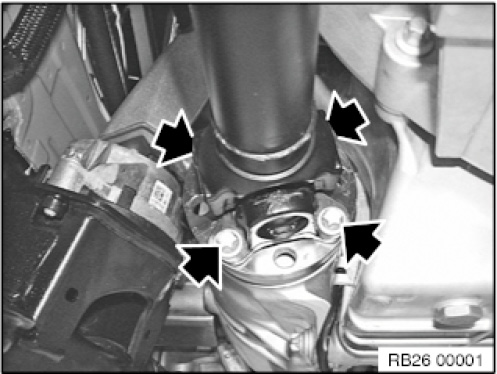

Release screws.

Installation note:
Replace screws.
Tightening torque 26 11 7AZ.
Slide propeller shaft towards rear and remove.







Installation note:
Slide propeller shaft fully towards rear.

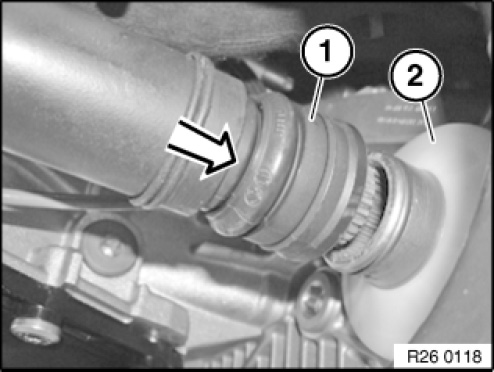

Sealing cup (1) must snap audibly into place and rest entirely on dust guard (2).
