33 41 151 Replacing Left or Right Wheel Bearing on Rear Axle Shaft

33 41 151 Replacing left or right wheel bearing on rear axle shaft





Necessary preliminary work:
^ Remove drive flange for output shaft.

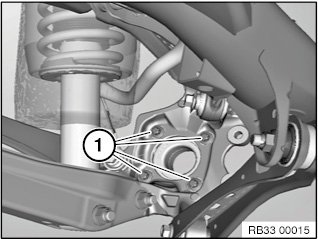

Release screws (1).

Tightening torque 33 41 2AZ.

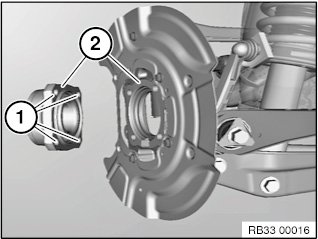

Remove wheel bearing.

Installation note:
Replace screws.





Installation note:
Keep contact surface (2) of wheel bearing/wheel carrier clean and free from oil and grease.
