31 00 ... Front Axle + Steering: Wheel/Chassis Alignment Check Must Be Carried Out After the Following Work

31 00 ... Front axle + steering: wheel alignment check must be carried out after the following work





A wheel alignment check must be carried out after the following work:

Release the following screw connections:
^ Steering box to front axle support
^ Lower wishbone to front axle support
^ Track rod end to track rod

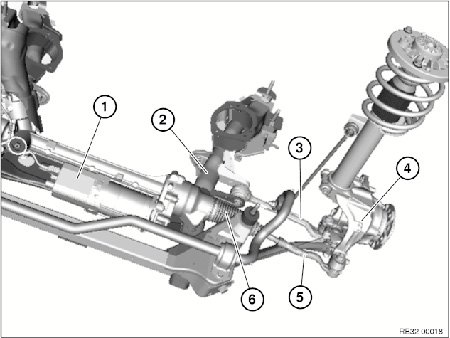

Replace the following components:
^ Steering box (1)
^ Front axle support (2)
^ Wishbone, bottom (3)
^ Swivel bearing (4)
^ Track rod end (5)
^ Track rod (6)
