31 51 020 Replacing Shaft Seal For Right Output Shaft

31 51 020 Replacing radial shaft seal for output shaft, right

Special tools required:





Necessary preliminary work:
^ Remove right output shaft

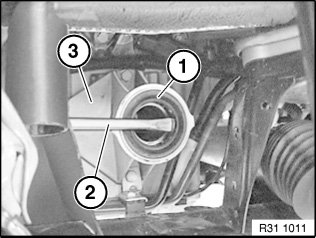

Lever radial shaft seal (1) with a screwdriver (2) out of bearing block (3).





Note:

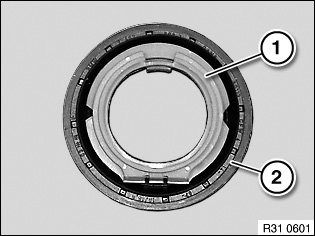

Protective sleeve (1) serves to protect the sealing lips of radial shaft seal (2) from being damaged when the output shaft is inserted into the bearing block.





Installation note:

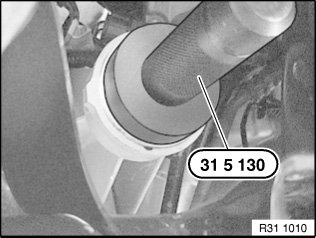

Drive in radial shaft seal with special tool 31 5 130 as far as it will go.
