22 32 050 Replacing Crossmember For Transmission Mounting

22 32 050 Replacing cross member for transmission mounting

Special tools required:







Necessary preliminary tasks:
- Remove rear underbody protection.
- Remove left underbody panelling.







Supporting transmission:

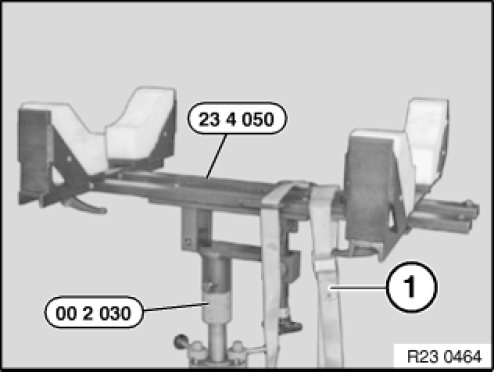

Support transmission with special tools 23 4 050,00 2 030.
Secure transmission to mounting with tensioning strap (1).
Tasks are described in gearbox holder.

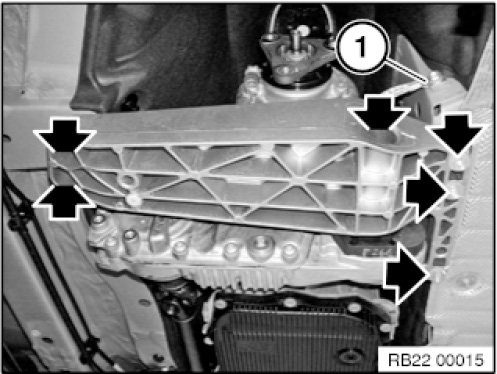

Unfasten ground strap (1).
Release screws.
Remove cross member.
Tightening torque 22 32 3/6AZ.
