61 31 339 Replace the Handle Cover For the Gear Selector Switch (Sport).

61 31 339 Replace The Handle Cover For The Gear Selector Switch (Sport).

Special tools required:

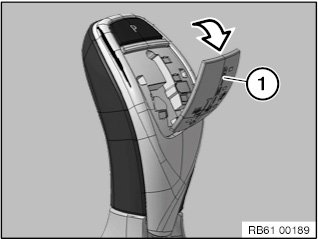

Lever out the display (1) with a suitable tool.

NOTE: Display (1) is glued on.

Installation note:
Remove the protective film from the back of the display before installing.
Make sure display (1) is correctly seated.

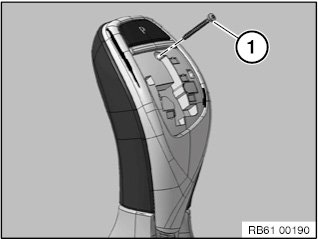

Release screw (1).
Tightening torque 61 31 5AZ.

NOTE: To tighten screws, use special tool 00 9 460.

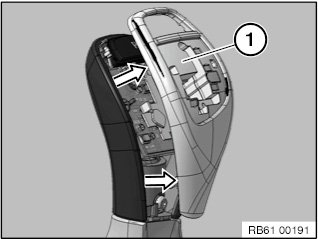

Zinc plated top shell design:
Remove top shell (1).

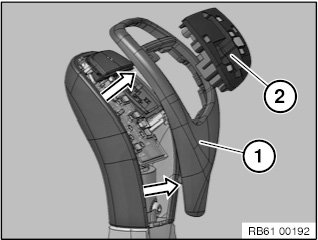

Ceramic top shell design:
Remove top shell (1).

NOTE: Hold-down device (2) is seated loosely in the top shell (1).

Installation note:
Make sure hold-down device (2) is correctly seated in upper shell (1).
