24 00 054 Installing Exchange Transmission (GA8HP45Z)

24 00 054 Installing exchange transmission (GA8HP45Z)





Important!
- Do not let skin come in contact with transmission oil and do not inhale transmission oil vapors.
- Wear protective gloves.
- Ensure adequate ventilation





Drain automatic transmission fluid at oil drain plug.

Tightening torque 24 11 2AZ.

Important!
After completion of work, program control transmission control unit.





Recycling:
Catch and dispose of escaping transmission oil.
Observe country-specific waste disposal regulations.





Important!
- Before installing exchange transmission, always flush transmission oil cooler together with lines.
- After completion of work, check transmission oil level.
- Use only approved transmission oil.
Failure to comply with this requirement will result in serious damage to the automatic transmission

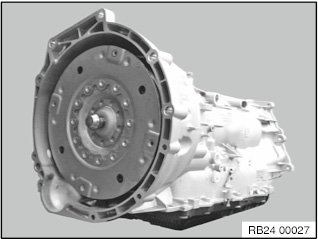

Exchange transmissions come filled with oil.





Necessary preliminary work:
^ Remove automatic transmission
^ Remove transfer box





Modify transportation retainers.

Convert all cable clips.

Convert all seal plugs.

Convert protective cap on output shaft.

Important!
After removing transportation retainer, secure torque converter against slipping out.

Transmission identification:
- refer to BMW Parts Department.
- On type plate
