Trailing Arm Bushing: Service and Repair

33 32 029 Replacing rubber mount for wishbone in wheel carrier

Special tools required:





Necessary preliminary work:
^ Release the upper wishbone.
^ Release the control arm.





Removing rubber mount:

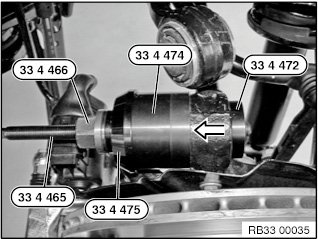

Pull rubber mounts out of the wheel carrier using special tools 33 4 465, 33 4 466, 33 4 472, 33 4 474 and 33 4 475 in the direction of travel.





Installing rubber mounts:

Important!

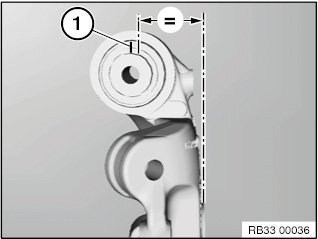

Align rubber mount by way of slot (1) parallel to the wheel carrier.





Installation note:

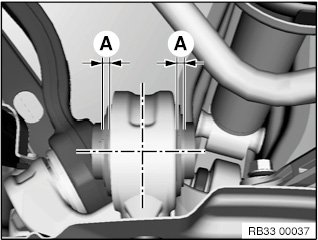

Protrusion (A) equally large.

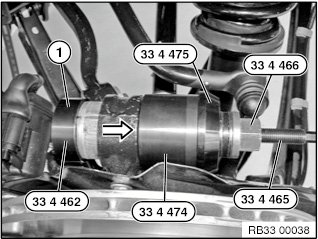

Pull rubber mount (1) in using special tools 33 4 462, 33 4 465, 33 4 466, 33 4 474 and 33 4 475.





After installation:
^ Carry out wheel alignment.
