33 55 021 Replacing Both Rubber Mounts For Anti-Roll Bar Mounting

33 55 021 Replacing both rubber mounts for anti-roll bar mounting





Necessary preliminary work:
^ Remove rear wheels.

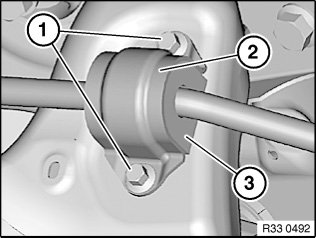

Release screws (1).

Tightening torque, 33 55 1AZ.

Pull off retaining bracket (2), open rubber mount (3) at slot and remove.

Installation note:
Keep retaining bracket (2), rubber mount (3) and anti-roll bar clean and free from oil and grease.

Clean rear anti-roll bar on both sides.

Position rubber mount on rear anti-roll bar.

Mount retaining bracket (2) on rubber mount (3).

Push rubber mount with retaining bracket on rear anti-roll bar to installation position and screw tight.
