33 55 000 Removing and Installing/Replacing Rear Anti-Roll Bar

33 55 000 Removing and installing/replacing rear anti-roll bar





Necessary preliminary work:
^ Remove both anti-roll bar links from anti-roll bar.
^ Lower rear axle support.

Note:
To simplify the graphic, anti-roll bar removal is shown on the removed rear axle.

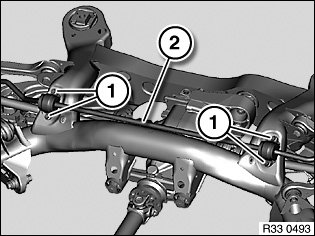

Release screws (1).

Tightening torque 33 55 1AZ.

Remove both rubber mounts from anti-roll bar.

Turn anti-roll bar (2) and remove from the side.

Installation note:
Check both rubber mounts for damage and replace if necessary.

Keep retaining bracket, rubber mount and stabilizer clean and free from oil and grease.
