31 35 005 Removing and Installing/Replacing Push Rod (Stabilizer Link) For Left/Right Stabilizer

31 35 005 Removing and installing antiroll bar link for left or right anti-roll bar





Important!
Risk of damage!
- Avoid bending the head of the antiroll bar during assembly!
- An impact screwdriver must not be used!





Detach bracket for brake hose on spring strut.

Important!
When releasing push rod screw connections (1) and (3), it is essential to counterhold with a Torx tool.

Slacken nut (1).

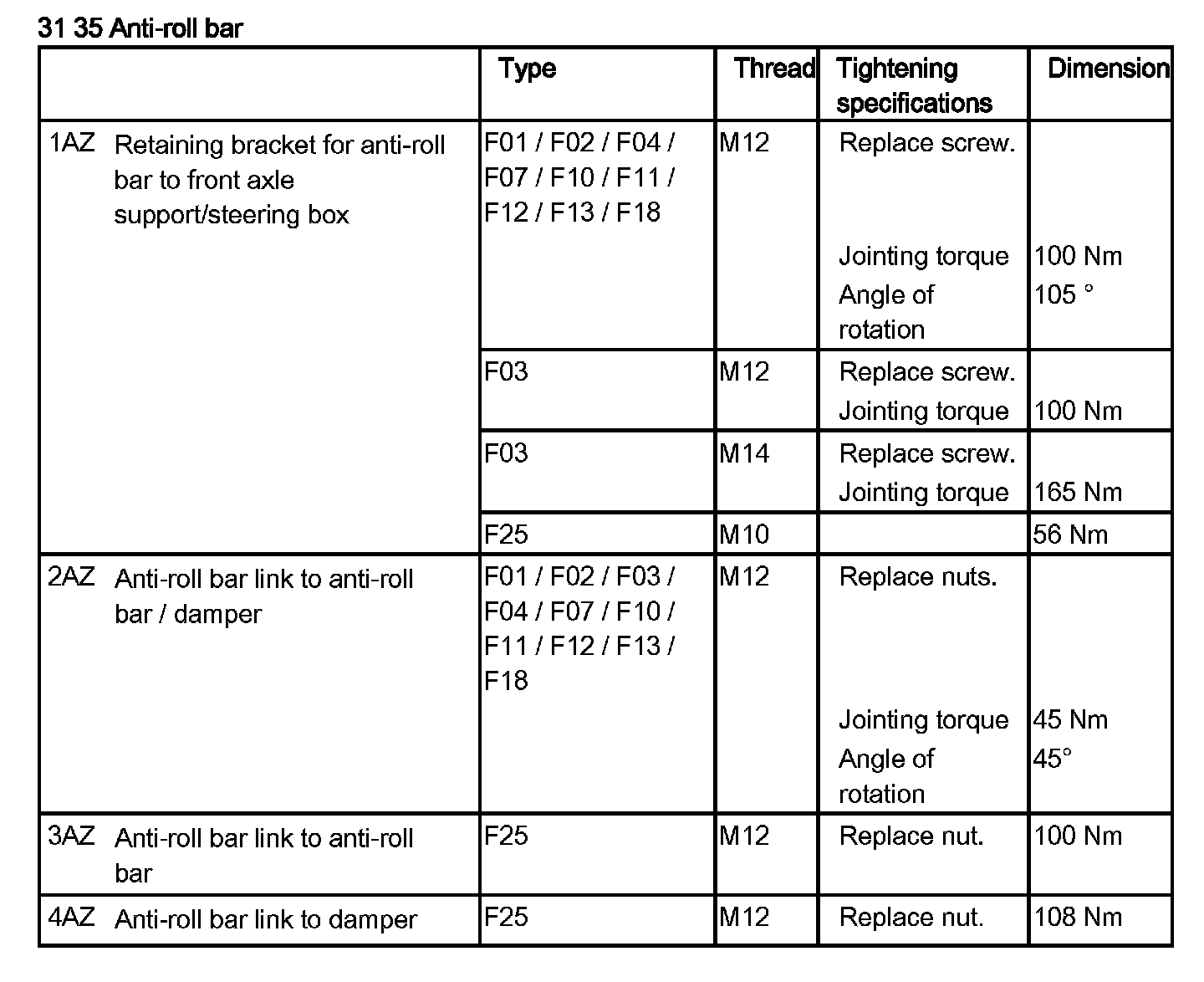

Tightening torque 31 35 4AZ

Release nut (3) and remove anti-roll bar link (2).

Tightening torque 31 35 3AZ

Installation note:
Replace self-locking nuts.
