31 12 050 Removing and Installing/Replacing Left or Right Trailing Link

31 12 050 Removing and installing/replacing left or right trailing link

Special tools required:







Necessary preliminary tasks:
- Remove front wheel.
- Remove underbody protection
- Partially loosen the lower wheel arch cover (front section).







IMPORTANT:
Do not release trailing link from wheel control joint with impact tool.
Check the rubber gaiter and circlip for damage.
When removing and installing the trailing link, check the seat of the circlip seal between the trailing link and the wheel control joint and replace the wheel control joint if needed.

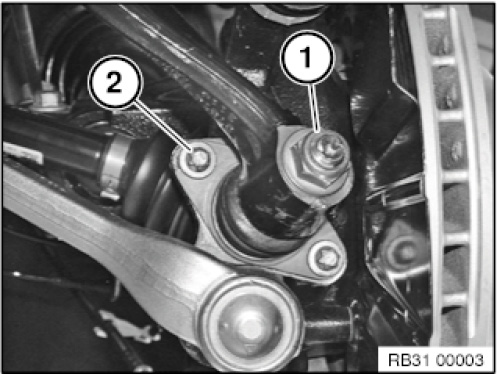

Release nut (1), if necessary, grip at inner Torx socket.

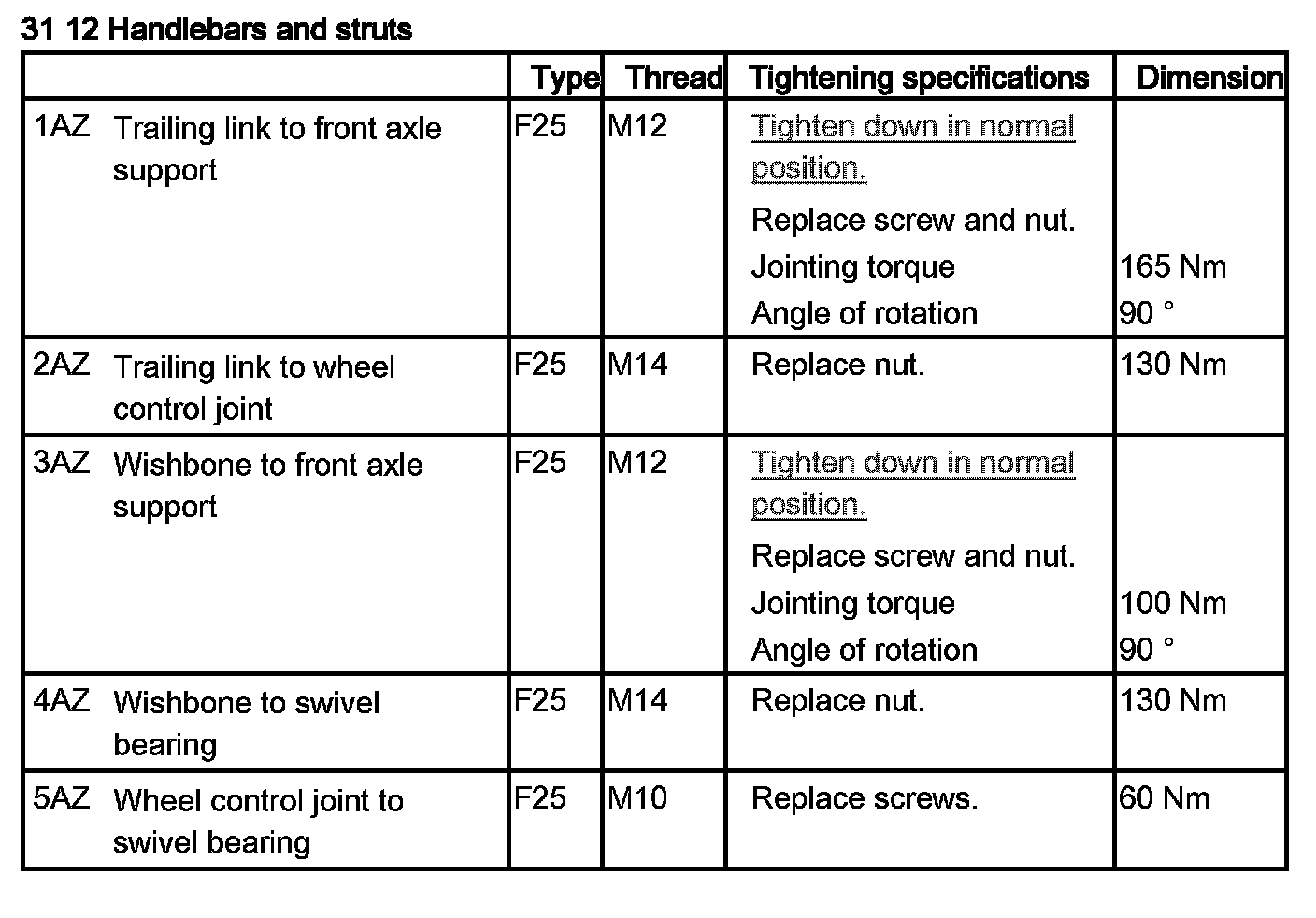

Tightening torque 31 12 2AZ

Installation note:
Replace self-locking nut.

Perform steering angle.
Release screw (2).
Tightening torque 31 12 5AZ

Installation note:
Rework thread in swivel bearing.
Replace microencapsulated screw.







If necessary, screw nut (1) onto guide joint by a few turns.
If necessary, replace lower section 31 2 242 with lower section 31 2 246

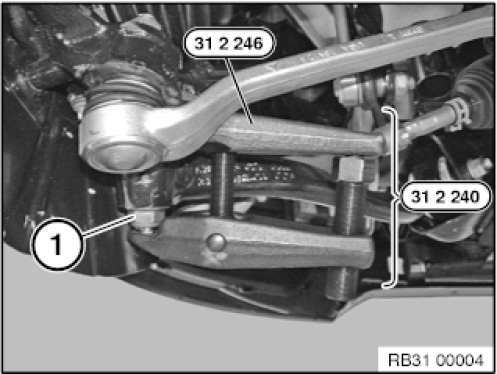

Press trailing link out of the guide joint with special tool 31 2 240.
Unscrew nut (1) and remove trailing link.

Installation note:
Keep journal on guide joint and bushing in tension strut clean and free from oil and grease.

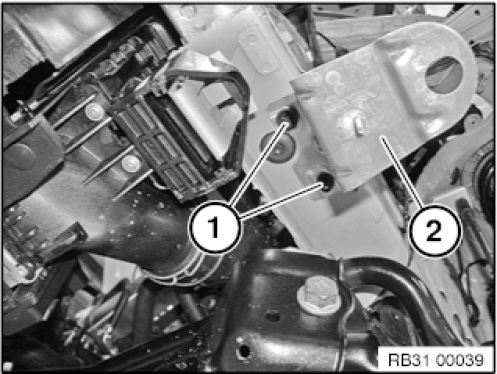

Release screws (1).
Remove holder for underbody protection (2).

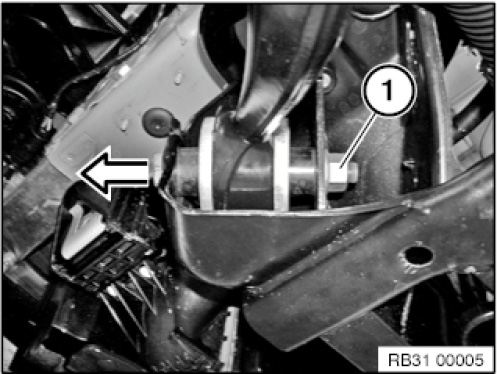

Slacken nut (1).
Tightening torque 31 12 1AZ
Remove screw towards front.
Remove tension strut.

Installation note:
Replace screw and nut.
Tighten down screw connection in normal position.
