31 21 090 Removing and Installing/Replacing Left or Right Swivel Bearing
31 21 090 Removing and installing/replacing left or right swivel bearingSpecial tools required:
Necessary preliminary work:
^ Remove front wheel.

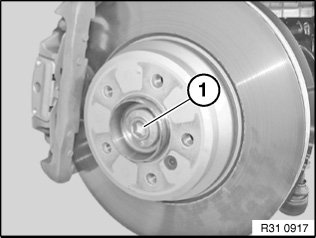

Release collar bolt (1), press brake pedal to floor for this purpose.
Tightening torque 31 60 2AZ.
Installation note:
^ Replace collar bolt and compression spring.
^ Note installation position of compression spring.
^ Keep collar bolt and spur toothing of bearing/output shaft clean and free of grease
Important!
Note on installation for spur gearing must be observed without fail!
Installation note:

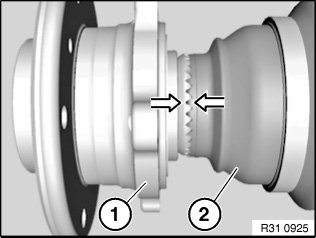

^ Spur gearing of bearing (1) and output shaft (2) must be installed form-fit (tooth in tooth)!
^ Tighten collar bolt and compression spring to 10 Nm.
^ Check whether spur gearing is locked tooth in tooth by reciprocally rotating wheel hub/output shaft.
^ Once a form-fit has been ensured, tighten to final torque.
Tightening torque 31 60 2AZ.
- Detach anti-roll bar link at spring strut.
- Detach pulse sensor on swivel bearing set down with the engine support.
- Detach track rod end from swivel bearing.
- Detach wishbone.
- Detach trailing link from guide joint.
Important!
Secure swivel bearing against falling out.
Slacken nut (1).
Tightening torque 31 31 3AZ.
Pull out screw (2) with cable clip (3) toward the rear.

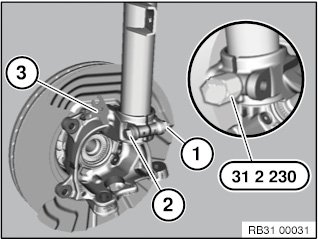

Expand swivel bearing with special tool 31 2 230.
Remove swivel bearing from spring strut.
Installation note:
Keep press fit of swivel bearing and spring strut in lower area clean and free from oil and grease.
Screw head must face opposite to the direction of travel.
Replace screw and nut.
Important!
When replacing spring strut/swivel bearing, the tightening sequence must be adhered to.
Tightening sequence:
^ Tighten using nut.
^ Initial torque 40 Nm
^ First torque 100 Nm, release nut by 120°
^ This ensure the setting properties of the new parts.
^ Tighten with the final torque.
Tightening torque 31 31 3AZ.
Installation note:

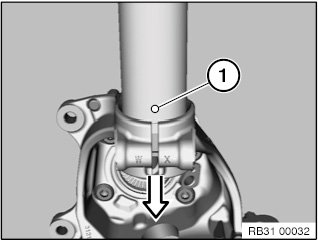

Align positioning pin (1) on spring strut to swivel bearing. Slide spring strut into swivel bearing to the limit position.
Replacement:
^ Modify wheel bearing or replace if necessary.
^ Modify guide joint or replace if necessary.
^ Modify brake anchor plate/protective plate or replace if necessary.
After installation:
^ Carry out wheel alignment procedure.
