33 32 180 Removing and Installing/Replacing Left or Right Toe Arm

33 32 180 Removing and installing/replacing left or right toe arm





Important!
- The toe link must be installed with the opening (U-section) facing downward!
- If the toe link is bent, the control arm/wheel carrier screw connection must be renewed.





Note:
If the toe link is detached from the rear axle support, it will be necessary to carry out the wheel alignment procedure.





Necessary preliminary work:
^ Remove rear wheel.

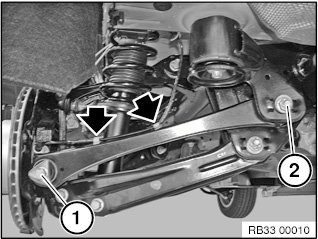

Open clips and remove cable for pulse generator.

Installation note:
Replace defective clamps.

Release screw (1).

Tightening torque 33 32 8AZ.

Installation note:
Replace screw.

The toe link must be installed with the opening (U-section) facing downward!

Tighten down screw connection in normal position.

Mark position of eccentric adjustment washer to rear axle support to simplify subsequent adjustment of rear axle.

Release nut (2) and remove screw.

Tightening torque 33 32 7AZ.

Installation note:
Replace nut.

Tighten down screw connection in normal position.





Installation note:

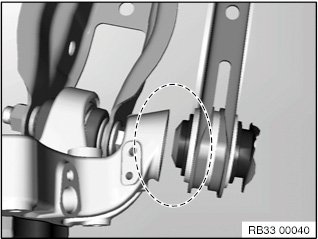

When installing, ensure that the tapered side of the bearing bush is connected first toward the wheel carrier.





After installation:
^ Carry out wheel alignment procedure.

%�>:
