33 32 091 Replacing A Control Arm

33 32 091 Replacing a control arm

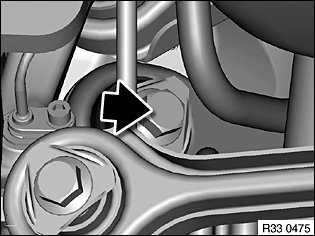

Release screw.

Tightening torque 33 32 4AZ

Installation note:
Replace screw.

Tighten down screw connection in normal position.





Important!
When installing, ensure that the tapered side of the bearing bush is connected first toward the wheel carrier.

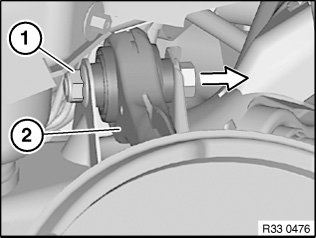

Slacken nut (1).

Tightening torque 33 32 3AZ.

Unscrew bolt towards rear and remove control arm (2).

Installation note:
Bolt head must point to rear.

Replace screw and nut.

Tighten down screw connection in normal position.

%�>:
