32 33 010 Removing and Installing/Replacing Sport Steering Wheel

32 33 010 Removing and installing/replacing sport steering wheel







NOTE: Chassis / wheel alignment is not necessary after the steering wheel has been removed and installed or replaced.







Necessary preliminary tasks:
- Remove airbag unit







Move wheels/sports steering wheel into straight-ahead position.
Unfasten plug connection.

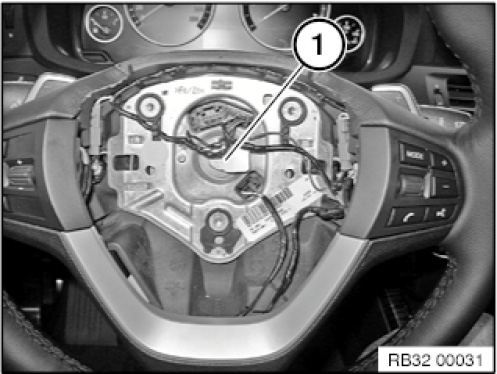

Release screw (1) and remove sports steering wheel.

Installation note:
Make sure connecting line(s) is/are correctly laid.

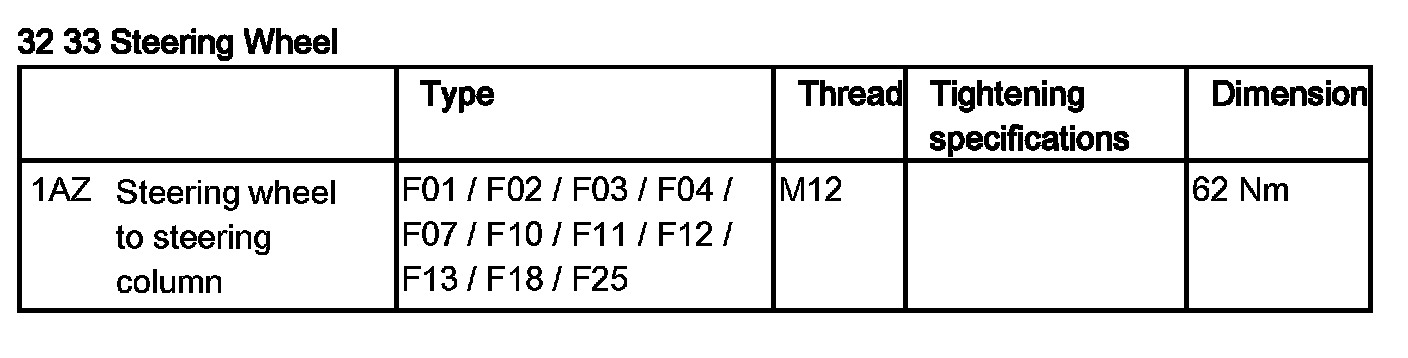

Tightening torque 32 33 1AZ.







Installation note:
Version with steering wheel heating: Before fitting sports steering wheel on steering column, ensure correct cable routing.

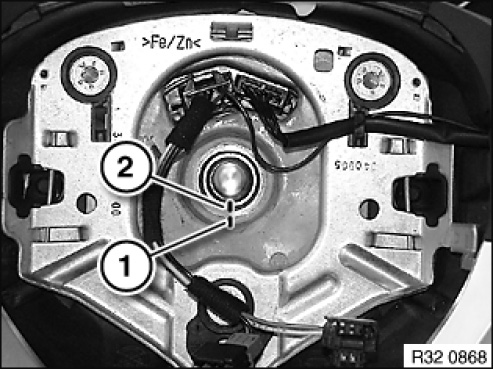

Align sports steering wheel by way of marking (1) to steering column marking (2) and attach.







Replacement:
- Reinstall both shift paddles
- Modify design cover
- Modify both switches on sports steering wheel
- If necessary, modify steering wheel electronics module control unit
