32 33 000 Removing and Installing/Replacing Steering Wheel

32 33 000 Removing and installing/replacing steering wheel





Note:
Chassis / wheel alignment is not necessary after the steering wheel has been removed and installed or replaced.





Necessary preliminary work:
^ Remove airbag unit

Move wheels/steering wheel into straight ahead driving position.

Disconnect plug connection.

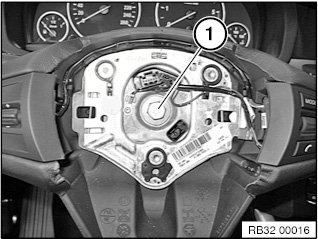

Release screw (1) and remove steering wheel.

Tightening torque 32 33 1AZ.





Installation note:
Before fitting steering wheel on steering column, ensure correct cable routing.

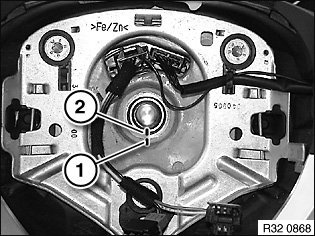

Align steering wheel by way of marking (1) to steering column marking (2) and attach.





Replacement:
^ Modify design cover
^ Modify multifunction steering wheel switch
^ If necessary, modify steering wheel module control unit
