61 12 062 Replacing Wiring Harness For Front Bumper

61 12 062 Replacing Wiring Harness For Front Bumper







IMPORTANT: Read and comply with notes on handling wiring harnesses and cables.







Necessary preliminary work:
- Remove front bumper trim.

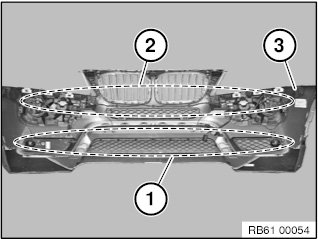

Release and disconnect plug connections in area (1).
Unclip wiring harness (3) in area (2).
Remove wiring harness (3).
Remove PDC.

Installation note:
Make sure wiring harness (3) is laid correctly.
