Clutch Switch: Service and Repair

61 31 299 Removing And Installing/replacing Clutch Switch Module







Necessary preliminary work:
- Remove trim panel for pedal mechanism.







NOTE: For purposes of clarity, the clutch master cylinder is shown removed.

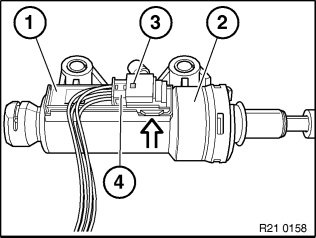

Lever out clutch switch module (1) from clutch master cylinder (2) with screwdriver.
Unlock plug (4) and disconnect from housing (3).







Installation note:

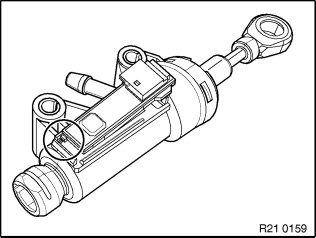

Clutch switch module is secured against incorrect installation.
Clutch switch module must snap audibly into place.
