Combination Switch: Service and Repair

61 31 008 Removing And Installing Steering Column Switch Cluster







WARNING:
Move wheels into straight-ahead position and do not alter this position during the repair work.
Do not under any circumstances turn the steering column switch cluster when the steering wheel is removed.







Necessary preliminary work:
- Remove steering wheel

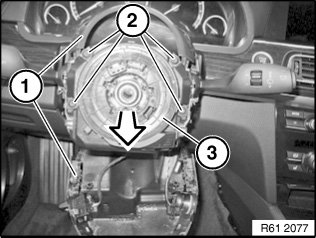

Unclip steering column shroud upper and lower sections (1).
Unfasten screws (2).

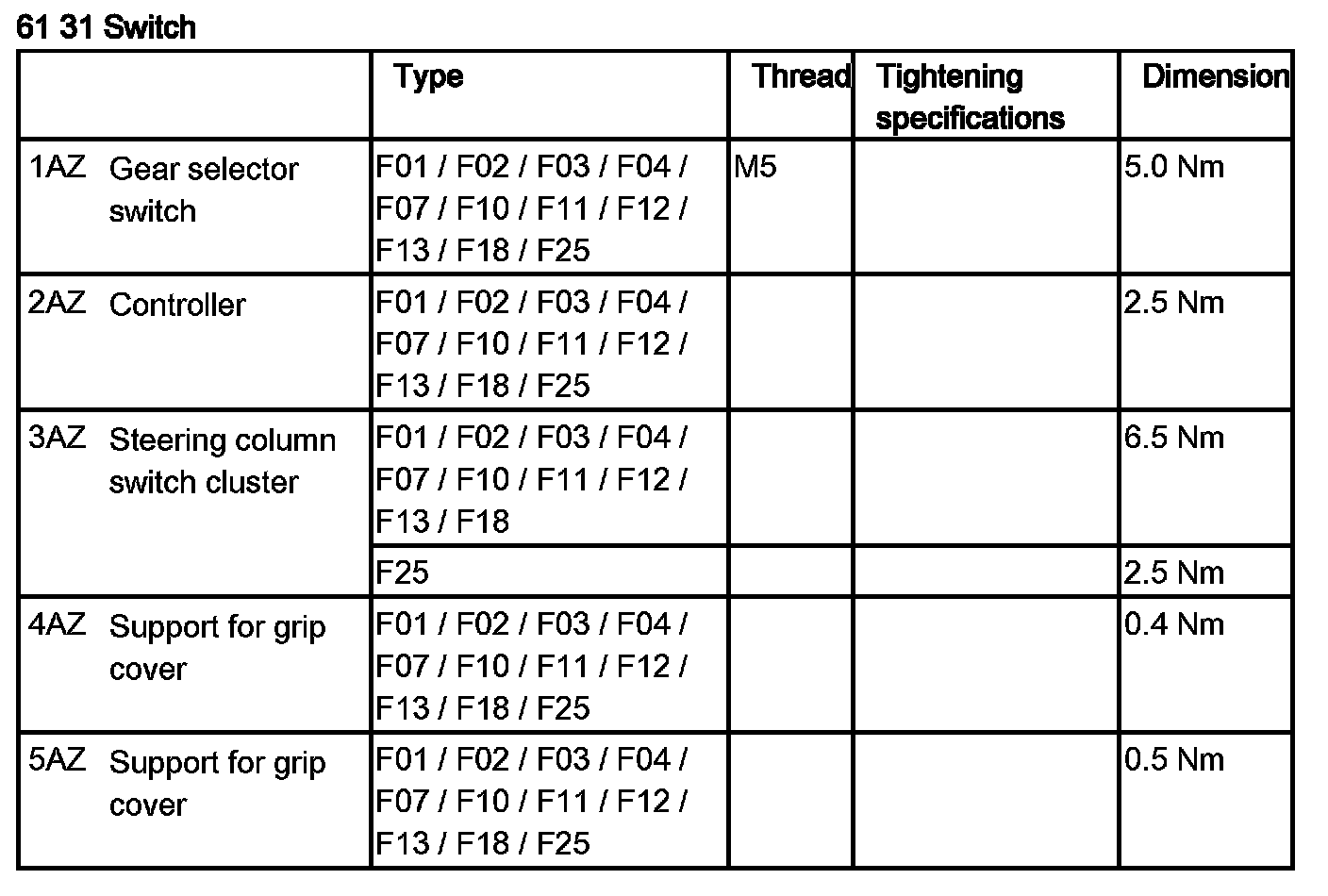

Tightening torque 61 31 3AZ.
Remove steering column switch cluster (3) in direction of arrow.

Installation note:
Carry out steering angle sensor adjustment.

On vehicles with active steering, steering angle sensor adjustment is performed by means of start-up / adjustment of active steering.







Disconnect plug connection (1).
Remove steering column switch cluster (2).







Replacement:
- Carry out vehicle programming/encoding
- Carry out steering angle sensor adjustment
- Vehicles with active steering:
- Steering angle sensor is adjusted by means of initial operation / adjustment of active front steering
- If necessary, proceed in accordance with instructions
