64 11 908 Removing and Installing/Replacing Footwell Temperature Sensor

64 11 908 Removing And Installing/replacing Footwell Temperature Sensor







Necessary preliminary work:
- Remove support for dashboard

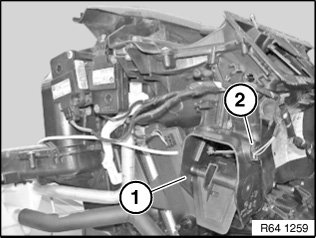

NOTE: For purposes of clarity, the following graphic shows the heater/air conditioner removed.







Remove temperature sensor (2) from air duct (1).
